Hi-flex shielded PVC data cable with individually shielded pairs

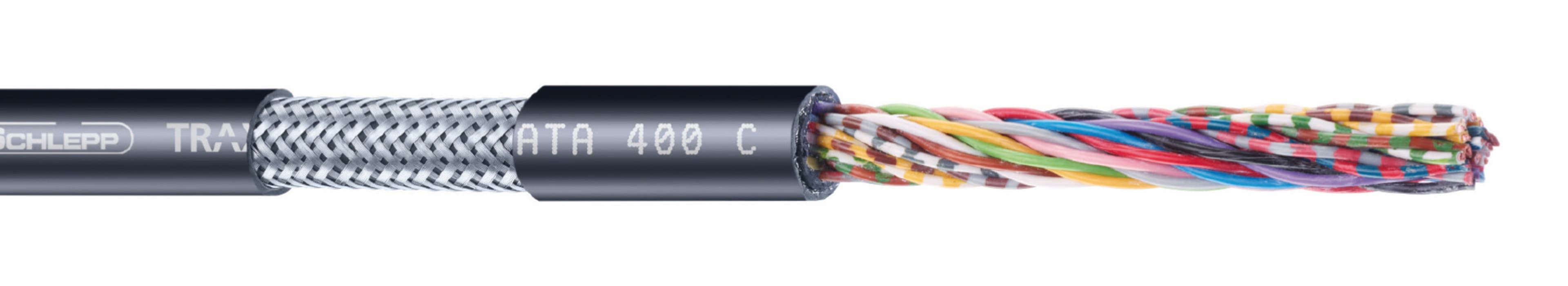

TRAXLINE® DATA 400 C
Layer stranded PVC data cable with individually shielded pairs for RS-485, RS-422, and analog signal transmission. 4 million motion cycles, travel up to 50 m.
DataPVC JacketShielded
Hi-flex shielded PVC data cable with individually shielded pairs
Voltage300/500 V
Temp Range-5 °C to +80 °C
Motion Cycles4 million
Travel Lengthup to 50 m
Bend Radius7.5 × cable OD
Key Features
Individually shielded twisted pairs
Layer stranded conductors
Black PVC outer jacket
4 million motion cycles
Type Selection
Complete list of orderable configurations — contact RSTECH for pricing and availability.
| Core Number × Cross-section | Part No. | max. Ø mm | Cable weight kg/m | Copper index kg/m |
|---|---|---|---|---|
| 4x0.25² | 48623 | 6.9 | 0.062 | 0.029 |
| 8x0.25² | 48627 | 8.4 | 0.093 | 0.056 |
| 25x0.25² | 48638 | 12.7 | 0.212 | 0.134 |
| 4x0.34² | 48647 | 7.3 | 0.071 | 0.027 |
| 5x0.34² | 48648 | 7.7 | 0.079 | 0.03 |
| 7x0.34² | 48649 | 8.5 | 0.099 | 0.04 |
Additional configurations available upon request. Contact RSTECH Electronics for pricing, lead times and samples.
Request a QuoteApplications
- RS-485 / RS-422 networks
- Analog signal lines
- Encoder feedback
